EMEB-OCF Electric actuated flanged butterfly valve by em-flow the optimal automation solution for any system
The EMEB-OCF Electric actuated flanged butterfly valve is a premium automated control valve from the brand EM-Flow (Taiwan), engineered for precise and efficient flow control in pipelines. By utilizing an electric actuator to rotate the valve disc, this product enables fully automated on/off or modulating control of fluids.
Featuring a standard flange connection, the EMEB-OCF valve ensures easy, secure, and leak-proof installation. It stands as the ideal choice for industries that demand stability, durability, and a high degree of automation.

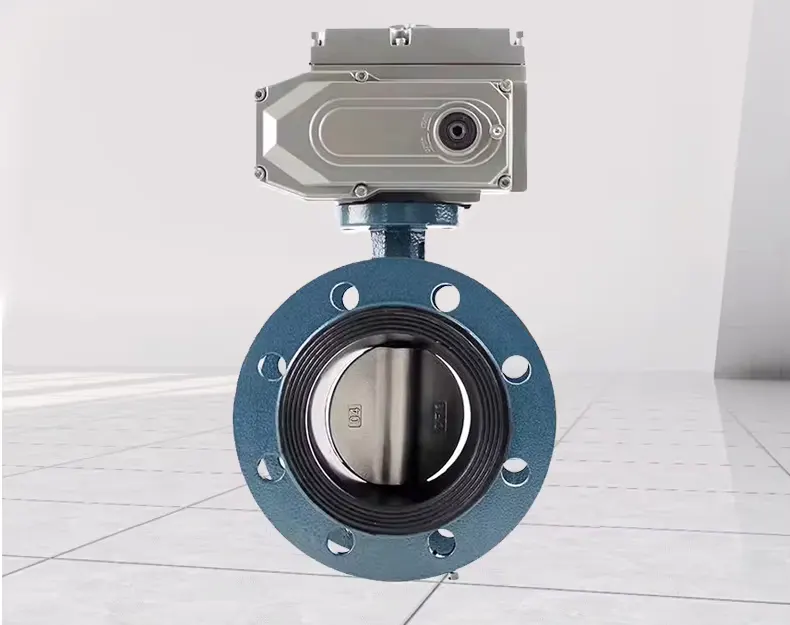

EM-Flow EMEB-OCF
Detailed technical specifications:
Model: EMEB-OCF
Brand: EM-Flow
Origin: Taiwan
Size: DN40 – DN600
Body Material: Cast Iron (WCB)
Disc Material: Stainless Steel 304 (SUS304) / Cast Iron (WCB)
Understanding its construction and operation reveals the superior capabilities of the EMEB-OCF valve.
Main Components
Body: Cast from robust materials like iron, carbon steel, or stainless steel, providing high strength and pressure resistance. The flange design allows for a direct and sturdy connection to pipelines using bolts.
Disc: The core component that controls the flow, typically made from stainless steel (SS304/SS316) for excellent corrosion and abrasion resistance. The disc rotates 90° to open or close the valve.
Stem: A durable metal shaft, made of stainless steel, that connects the electric actuator to the disc, transmitting rotational force to operate the valve.
Seat: An elastomeric ring (EPDM, NBR, PTFE) fitted between the disc and the body. It ensures a bubble-tight seal when the valve is closed, preventing any leakage.
Electric Actuator: The “brain” of the valve, which converts an electrical signal into mechanical rotational motion. EM-Flow’s actuators are renowned for their durability and precision.
Operating Principle
Upon receiving an electrical signal from a control panel or PLC, the motor inside the electric actuator is energized. Through a gearbox system, the motor generates powerful torque, which rotates the valve stem 90°. This action turns the disc to either the fully OPEN or fully CLOSED position, allowing or blocking the fluid flow.
For modulating versions, the opening angle of the disc can be precisely adjusted based on an analog signal (4-20mA or 0-10V), enabling accurate flow rate regulation.
Outstanding features of the EMEB-OCF electric butterfly valve
Robust and Secure Flange Design: Guarantees a leak-proof connection, simplifies installation and maintenance, and enhances system safety.
Versatile Materials for Various Applications:
Body: Cast iron, carbon steel, stainless steel – meeting diverse pressure and corrosion resistance needs.
Disc: Stainless steel SS304/SS316 – ideal for water, light chemicals, and food-grade applications.
Seat: EPDM, NBR, Viton, PTFE – flexible options for various media like water, wastewater, oil, gas, and chemicals.
High-Performance Electric Actuator:
Superior Durability: Features a powerful motor and a robust gearbox designed for harsh industrial environments.
Precise Control: Offers multiple control options (ON/OFF, modulating) for optimal system management.
Integrated Safety Features: Equipped with limit switches and thermal overload protection to prevent motor damage.
IP67/IP68 Weatherproof Rating: Ensures reliable operation in wet, humid, or dusty conditions.
Manual Override: Includes a handwheel or wrench for manual operation during power outages or emergencies.
Optimized Flow Efficiency: The slim disc design minimizes pressure drop and obstruction, ensuring maximum flow when fully open.
Easy Integration into Automated Systems: Seamlessly connects to SCADA/PLC systems for remote control and monitoring.

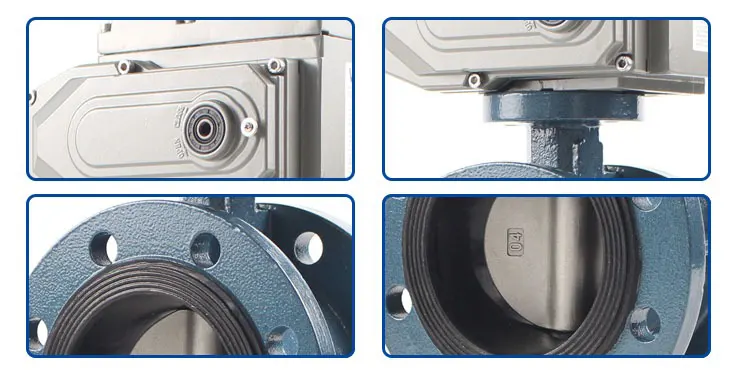

Robust and Secure Flange Design
Key benefits of using the EMEB-OCF valve
Investing in the EM-Flow EMEB-OCF valve provides significant, long-term value:
Enhanced Automation: Reduces reliance on manual intervention, improving system accuracy and efficiency.
Optimized Operation: Precise flow control helps conserve energy and reduce material waste.
Exceptional Reliability: Stable and durable performance reduces unplanned downtime and maintenance interruptions.
Low Maintenance Costs: High-quality materials extend the product’s service life and reduce the need for frequent upkeep.
International quality standards
EM-Flow products, including the EMEB-OCF valve, are manufactured in compliance with strict international standards such as ISO 9001, CE, and API 609, ensuring absolute quality, safety, and reliability for all customers.
Wide range of industrial applications
Thanks to its superior features, the EMEB-OCF valve is a top choice across many industries:
Water and Wastewater Treatment: In water plants, pumping stations, and filtration systems.
HVAC Systems: Controlling hot/chilled water flow in central air conditioning systems.
Fire Protection Systems: Managing water supply lines for automatic sprinkler systems.
Chemical Processing: Transporting acids, alkalis, and solvents (requires appropriate material selection).
General Manufacturing: Used in textile, food and beverage, and paper production plants.
Agriculture: For large-scale automated irrigation systems.
Power Plants: Controlling cooling water systems.
Conclusion: The EMEB-OCF Flanged Electric Butterfly Valve by EM-Flow is a comprehensive automation solution that perfectly blends modern control technology with robust mechanical design. With its precise operation, high reliability, and versatile applications, it is a smart investment that helps optimize processes, reduce costs, and enhance the competitive edge of any industrial enterprise.
